Reference: 5SMA80G30-00-00

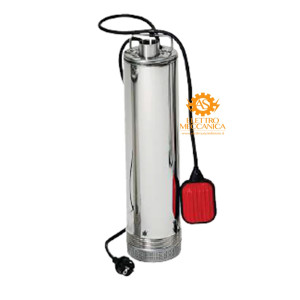

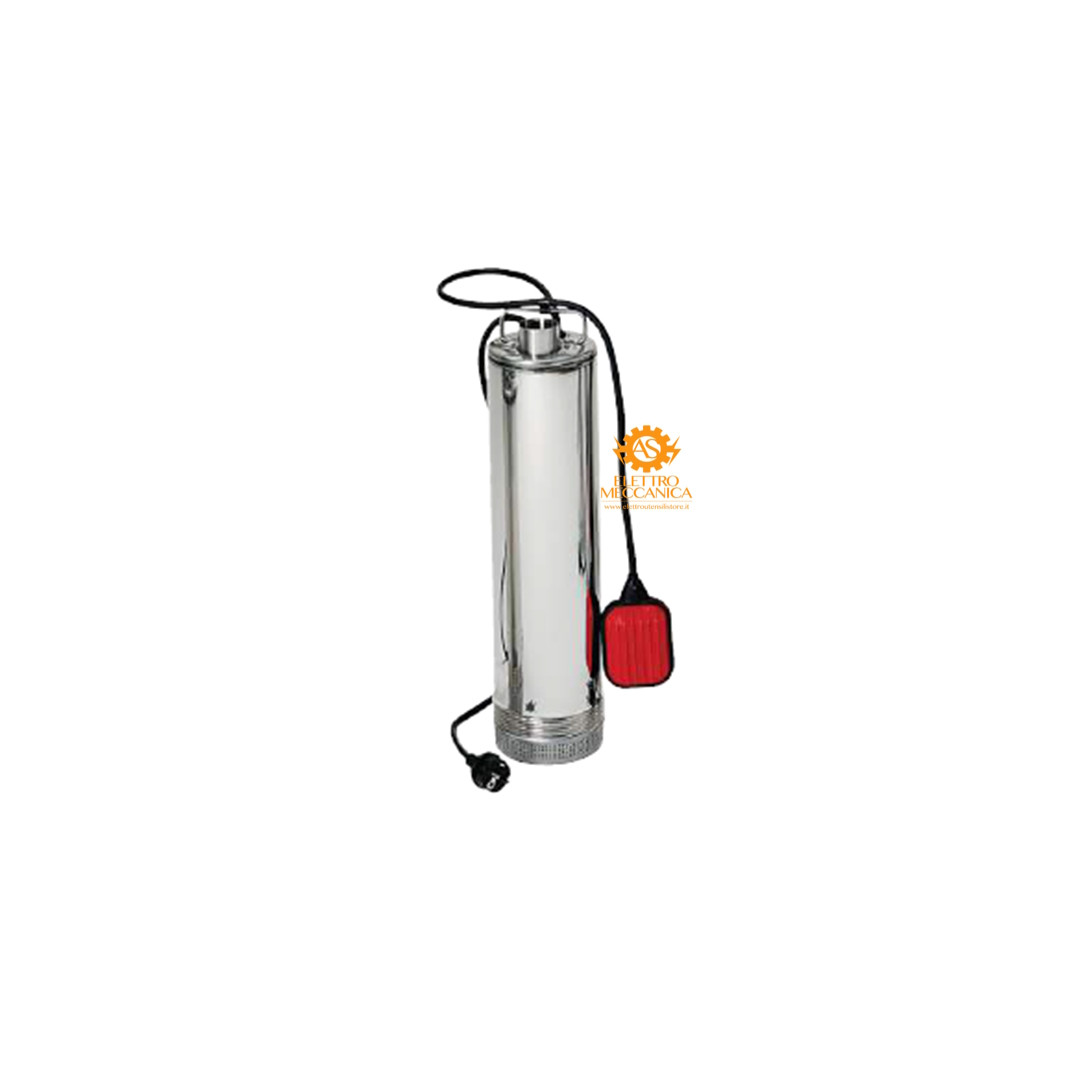

Multistage Submersible Electric Pumps with AISI 304 Stainless Steel Casing
These pumps feature a motor cooled by the pumped liquid, which is drawn in through the filter grid located at the bottom of the unit.
Designed for lifting clean water from wells or tanks, they are ideal for garden and vegetable plot irrigation as well as domestic pressurization systems.
Supplied with built-in capacitor and 20 meters of H07RN-F cable.
5SM Series – Multistage Submersible Electric Pumps
Model: 5SMA 70G – 1,6 HP / 1.2 kW
Lifting clean water from tanks or wells
Suitable for garden and vegetable garden irrigation
Domestic water pressurization systems
Pump body made of AISI 304 stainless steel
Motor cooled by pumped liquid
Supplied with built-in capacitor and 20 m H07RN-F cable
Impellers and diffusers: Glass-filled PPO
Shaft: AISI 420 stainless steel
Mechanical seal: Lubricated alumina/graphite
Insulation class: F
Power supply: Single-phase 230V 50Hz with thermal protection and built-in capacitor
Type: Two-pole asynchronous motor in oil bath
Reliable and efficient, the 5SMA 40G is a robust solution for domestic and light agricultural water management needs.
