Elettropompa Sommergibile DR-Steel 75/2 M50 TCW 10/SH Monofase Zenit
Caratteristiche generali
Mandate 1"1/4 - 1"1/2
Poli motore 2
Passaggi Max 12 mm
Potenze 0,25 - 0,75 kW
Girante multicanale aperta
Spedito entro 6 giorni lavorativi
Reference: 48TPM050A1U
TOP MULTI pumps are recommended for pumping clean water and not chemically aggressive liquids due to the materials the pump is composed.
Thanks to their high efficiency and reliability TOP MULTI pumps are suitable for domestic water supply from tanks, reservoirs or relatively deep wells, for collecting rain water from cisterns to water your garden or to supply an irrigation system, etc.
Description
TOP MULTI pumps are recommended for pumping clean water and not chemically aggressive liquids due to the materials the pump is composed. Thanks to their high efficiency and reliability TOP MULTI pumps are suitable for domestic water supply from tanks, reservoirs or relatively deep wells, for collecting rain water from cisterns to water your garden or to supply an irrigation system, etc.
Features
Liquid type: Clean water
Uses: domastic, civil
Applications: water supply, pressurization system, irrigation
Category: submersible
Family: multi-impeller submersible

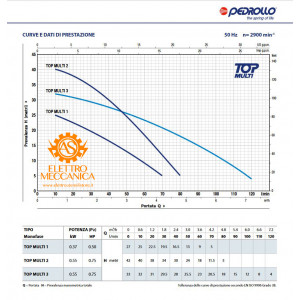

Performance range:
Flow rate up to 120 l/min (7,2 m³/h)
Head up to 42 m
Application limits:
Liquid temperature up to +40 °C
Depth of use below water level:
-up to 3m for TOP MULTI 1
-up to 10m for TOP MULTI 2-3
(with a sufficiently long power cable)
Emptying level:
- up to 25mm from the bottom for TOP MULTI 1
- up to 35mm from the bottom for TOP MULTI 2-3
Continuous service S1
DOWNLOAD SPECIFICATIONS
