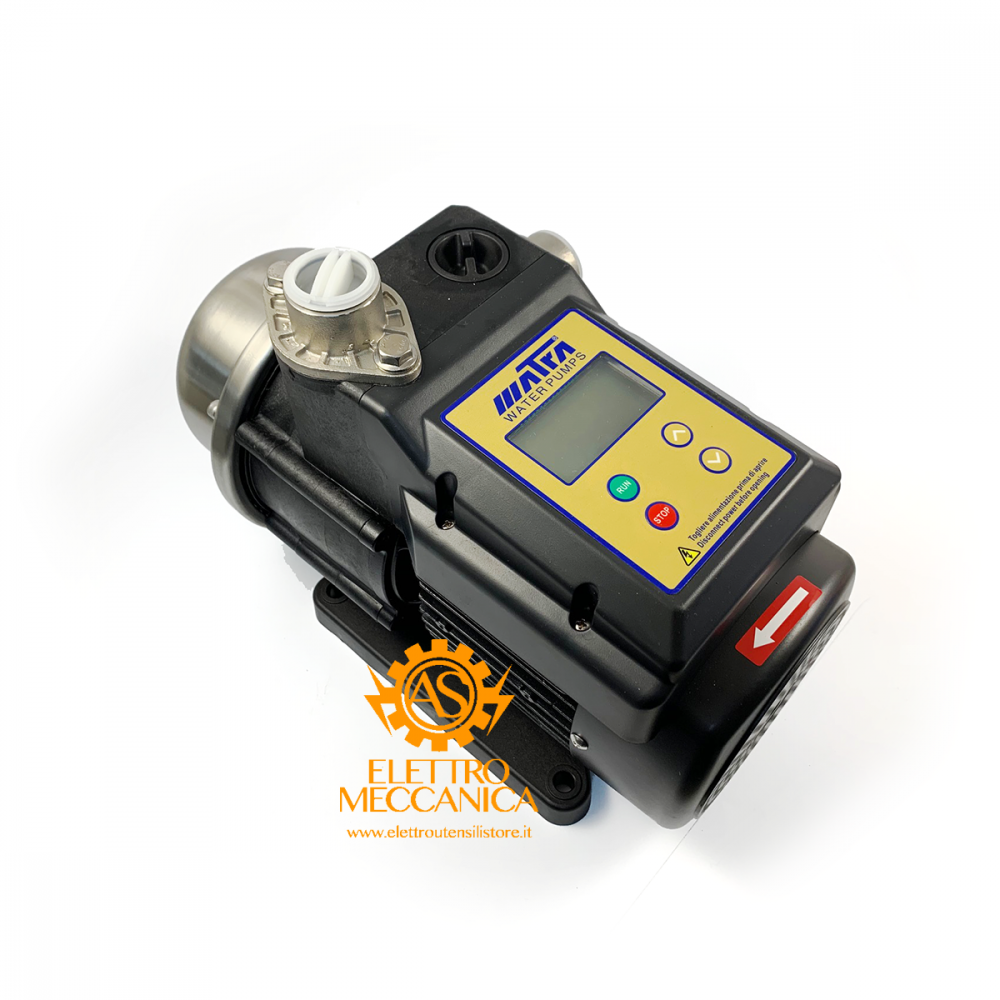

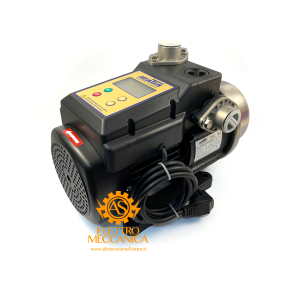

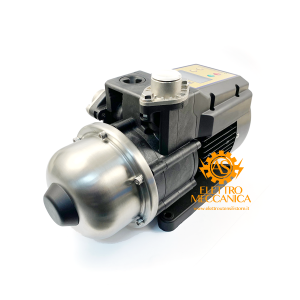

Matra multistage pump with Aladino ADVANCE integrated frequency converter
Compact article ready to be installed
MHI 20/3 PUMP + ALADINO ADVANCE FREQUENCY CONVERTER
General information
Multistage Pump with integrated frequency converter and permanent magnet motor to ensure unparalleled constant pressure and energy efficiency.
Integrated transducer, expansion tank and non-return valve.
Display showing operating indicator for selecting pressure and viewing parameters.
Aladino ADVANCE pump with included frequency converted ensures constant water pressure. Ideal for home water supply, multi-unit dwellings, commercial establishments, small apartment blocks and watering.
Highest quality components.
MATERIALS
Pump body: polypropylene
Rotor: tecnopolymer
Mechanical seal: Ceramic Graphite
Tank membrane 0.5l: butyl
MOTOR
Self-ventilated sealed motor
Degree of protection: IP55
Insulation class F
Single-phase power supply 230V-50Hz with integrated frequency converter
MAIN FEATURES
Pumped liquid temperature: up to 60°C
Average energy saving 50%
Silent operation
Automatic start and stop valv
Power modulating depending on water withdrawn
Lack of water safty stop
Loss of water safty stop
Maximum flow rate 80 l/m maximum height 50meters
Holding pressure adjustment with cursor
