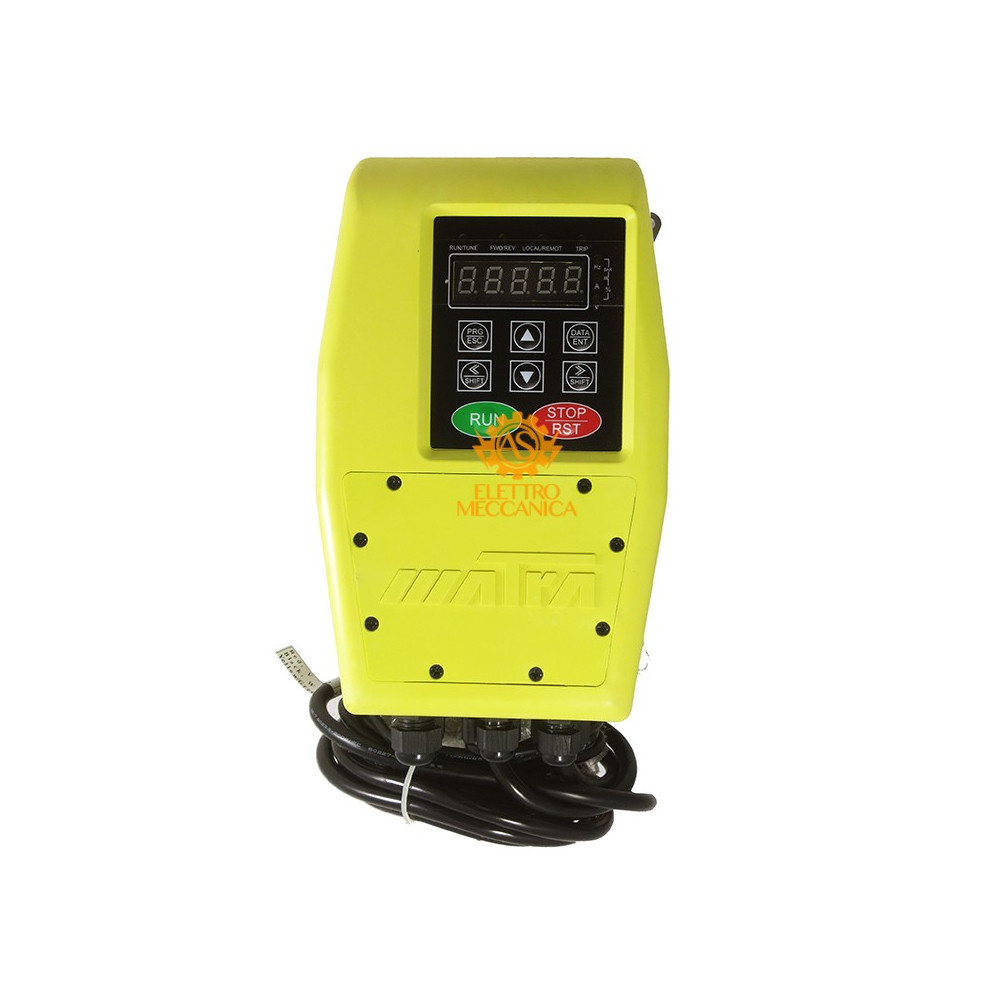

Aladino MM 2 W Evolution Inverter for Electric Pumps up to 2 HP

Aladino MM 2 W Evolution Inverter for Electric Pumps up to 2 HP

Reference: MM2W

€336.07
Tax excluded Shipping excluded * 3-4 days (unless otherwise specified)

Frequency Converter – Aladino Evolution Series

Quantity
Last items in stock

Inverters are professional devices that allow the variation of the power supply frequency of electric motors.
The Aladino® Pump Inverters are specifically designed for the electronic control and management of pumping systems, aiming to ensure cost-effective operation, constant pressure, and quiet performance. These goals are achieved by reducing inrush currents during startup, lowering the power consumption of pumps during operation, and by gradually turning off motors whose rotation is modulated according to the amount of liquid drawn from the system: this eliminates the typical energy waste of pumping units controlled by pressure switches or other electronic devices.

Aladino® Pump Inverters can manage surface pumps, submersible pumps, heating and cooling pumps, regardless of their flow rate and operating pressure; in addition to the electrical connection, they only require a sensor that reads the system’s water pressure.

Very easy to install, particularly suitable for converting existing systems with pressure or flow switches without any hydraulic modifications.

Features:
- Single-phase 230V-50Hz inverter for single-phase pumps up to 2 HP (maximum 14.2 amps).

- Wall mounting via 4 fixing holes.

- Automatic setting of operating parameters (automatically records the electromechanical parameters of the connected electric pump).

- Satin-finished, heat-resistant plastic cover.

- Heat dissipation fan for better device cooling.

- Membrane panel with keypad for pressure adjustment (+/-)

- All models feature a display capable of showing: working frequency (Hz), working current (A), working voltage (V), set pressure (bar), operating pressure (bar).

- IP 51 enclosure protection.

- The anti-ice function allows automatic recirculation in case of water in the system at temperatures below 5°C.

- The anti-clogging function allows a brief reverse rotation of the electric pump in the event of solid particle blockage inside it.

- Aladino Evolution allows programming of 3 different daily operating modes, enabling the electric pump to work at different pressures at different times of the day.

- All Aladino Evolution models can communicate with each other, up to a maximum of 6 units, via RS485 connection. In group operation, the master backup mode allows automatic bypassing of any faulty unit.

- Aladino Evolution is equipped with a device that reduces radiofrequency interference; an optional external EMC filter is also available.

- In multi-pump groups, Aladino Evolution, when working in synchronous mode, allows the electric pumps to run at the same speeds, resulting in significant energy savings for each individual pump.

- Models from 22kW and above come with a standard output filter to protect against overvoltage.

- Supplied with installation, use, and maintenance manual.
