Abac B3800B - NS18S pumping unit - Compressor filter, flywheel and Aftercooler

Abac B3800 - NS18 pumping unit - Cheap compressor filter, flywheel and Aftercooler

Reference: 6218739400

€225.41
Tax excluded Shipping excluded *

Abac B3800B - NS18S pumping unit. A Cheap compressor filter, compressor flywheel and Aftercooler are included in the price

Quantity
Unavailable

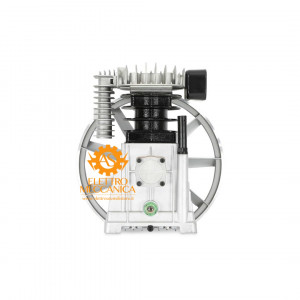

Belt-Driven Single-Stage Twin-Cylinder Compressor Unit ABAC Model B3800B - NS18S
Original Spare Part for Compressor, Compatible with ABAC – BALMA – NUAIR – FINI – CECCATO

- Air filter and flywheel included in the price
- Die-cast aluminum heads with large fins for better cooling
- Oversized oil sump for improved lubrication
- Special valve plates with very high wear resistance

The compressor unit is supplied by the manufacturer without oil.

Technical Specifications:

Maximum Pressure [bar] 10

Intake Air [l/min] 390 at [rpm] 1100

Intake Air [l/min] 480 at [rpm] 1300

Designed to work with a 3 HP / 2.2 kW - 4 HP / 3 kW engine

Number of Pistons 2

Number of Compression Stages 1

Rotation Speed [rpm] 1100 - [rpm] 1300

Gruppo Pompante Abac B3800 con Filtro Economico e Volano

6218739400
