Reference: 1123020154
FIAC AB 360 air compressor unit
The AB series distinguishes the twin-cylinder compressor groups with single-stage and two-stage oil-lubricated belt transmission.
The Fiac compressor groups have been designed and tested in compliance with the strictest international standards.
Particular attention has been dedicated to reducing noise levels and dissipating the heat generated during operation.
The compressor unit is supplied by the manufacturer without oil.
| l /min (Air displ./Air intake) | 350 |
|---|---|
| CFM (Air displ./Air intake) | 12.4 |
| m3/h (Air displ./Air intake) | 21 |
| l /min (F.A.D./Air output) | 225 |
| CFM (F.A.D./Air output) | 7.9 |
| m3/h (F.A.D./Air output) | 13.5 |
| bar | 10 |
| psi | 145 |
| HP | 3 |
| kW | 2.2 |
| Cyl# / St# | 2/1 |
| min-1 | 1500 |
| LxWxH_mm / in | 350x300x400 13.8x11.8x15.8 |
| kg / lb | 12 26 |
| ø FLYWHEEL ø_mm / in | 300x1A 12.8x1A |
FIAC AB 360 air compressor unit
Gasket kit for Fiac AB 248 - AB 338 - AB 360
New code 1129700078
previous code 9700000078

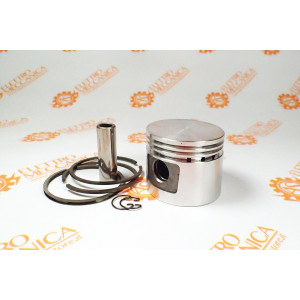

Piston d 59 kit for Fiac AB 360 - AB 410 -AB 510 pumping units
New code 1124290114
previous code 4291140000
valid for AB 360 pump units producted until 30/11/2007
Crank for Fiac AB 248 - AB 338 - AB 258 - AB 268 - AB 360 Pumping units
New code 1129102561
Previous code 9100270140

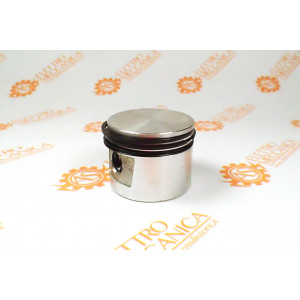

Piston kit d.59 for Fiac AB 360 pumping units
New code 1129702034
previous code 9700002034
for pump unit produced after 24/12/2008
Valve plate kit for FIAC AB 268 - AB 360 pumping units
Code 1129703272
