Reference: 1123020160

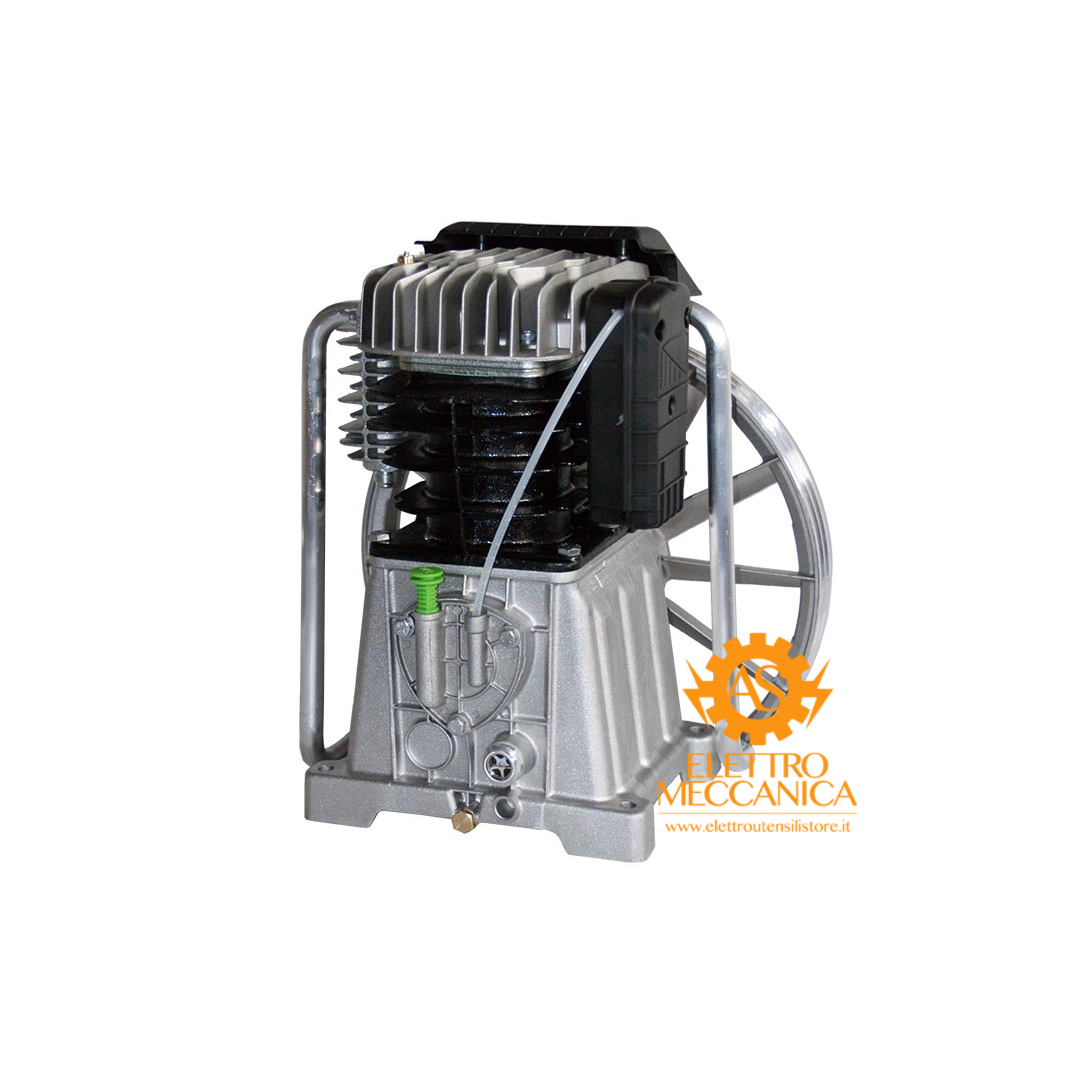

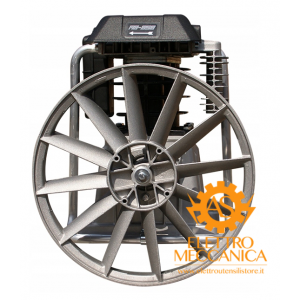

FIAC AB 678 air compressor unit
The AB series distinguishes the oil-lubricated single-stage and two-stage belt-driven two-cylinder compressor units.
The Fiac compressor units have been designed and tested in compliance with the strictest international standards.
Particular research has been dedicated to controlling noise levels and dissipating heat generated during operation.
The compressor unit is supplied by the manufacturer without oil.
| l /min (Aria asp./Air displ.) | 598 |
| CFM (Aria asp./Air displ.) | 21.12 |
| m3/h (Aria asp./Air displ.) | 36 |
| l /min (Aria resa/F.A.D.) | 450 |
| CFM (Aria resa/F.A.D.) | 15.9 |
| m3/h (Aria resa/F.A.D.) | 27 |
| bar | 10 |
| psi | 145 |
| HP | 5,5 |
| kW | 4 |
| Cil# / St# | 2/2 |
| min-1 | 1000 |
| LxPxH_mm / in | 400x330x440 |
| kg / lb | 30/66,14 |
| ø VOLANO_FLYWHEEL ø_mm / in | 400x1SPZ / 15.8x1-3V |
FIAC AB 678 air compressor unit

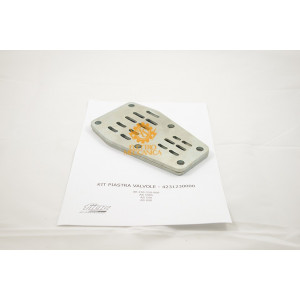

Valve plate kit for FIAC AB 450 - AB 550 - AB 598 - AB 800
New code 1124230123
previous code 4231230000

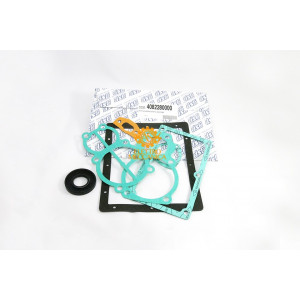

Gasket kit for Fiac AB 598 AB 808 Pumping units
New code 1124080228
previous code 4082280000

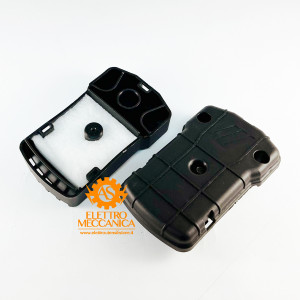

Vacuum filter kit for Fiac AB 598S - AB 598 - AB 808 Pumping units
New code 1124080029
previous code 408029000

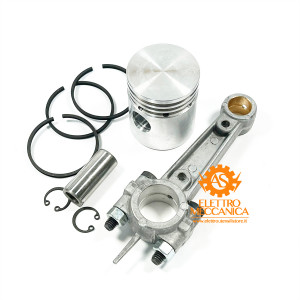

High pressure Piston connecting rod kit for FIAC AB 598 Pumping units.
High Pressure Piston diameter 52 mm

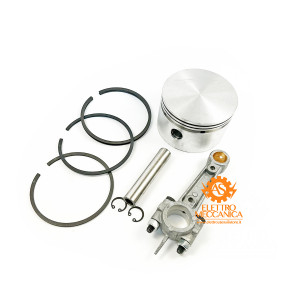

Low pressure Piston connecting rod kit for FIAC AB 598 Pumping units.
Low Pressure Piston diameter 100 mm

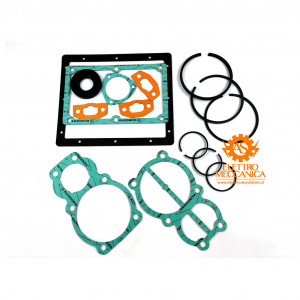

Upgrade kit FIAC AB598 - AB598S - AB800 pumping units
Code 1124080924
