Reference: 1123020158

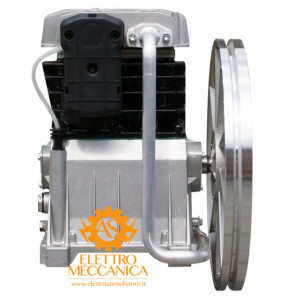

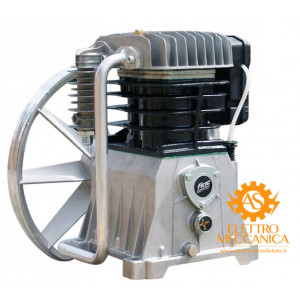

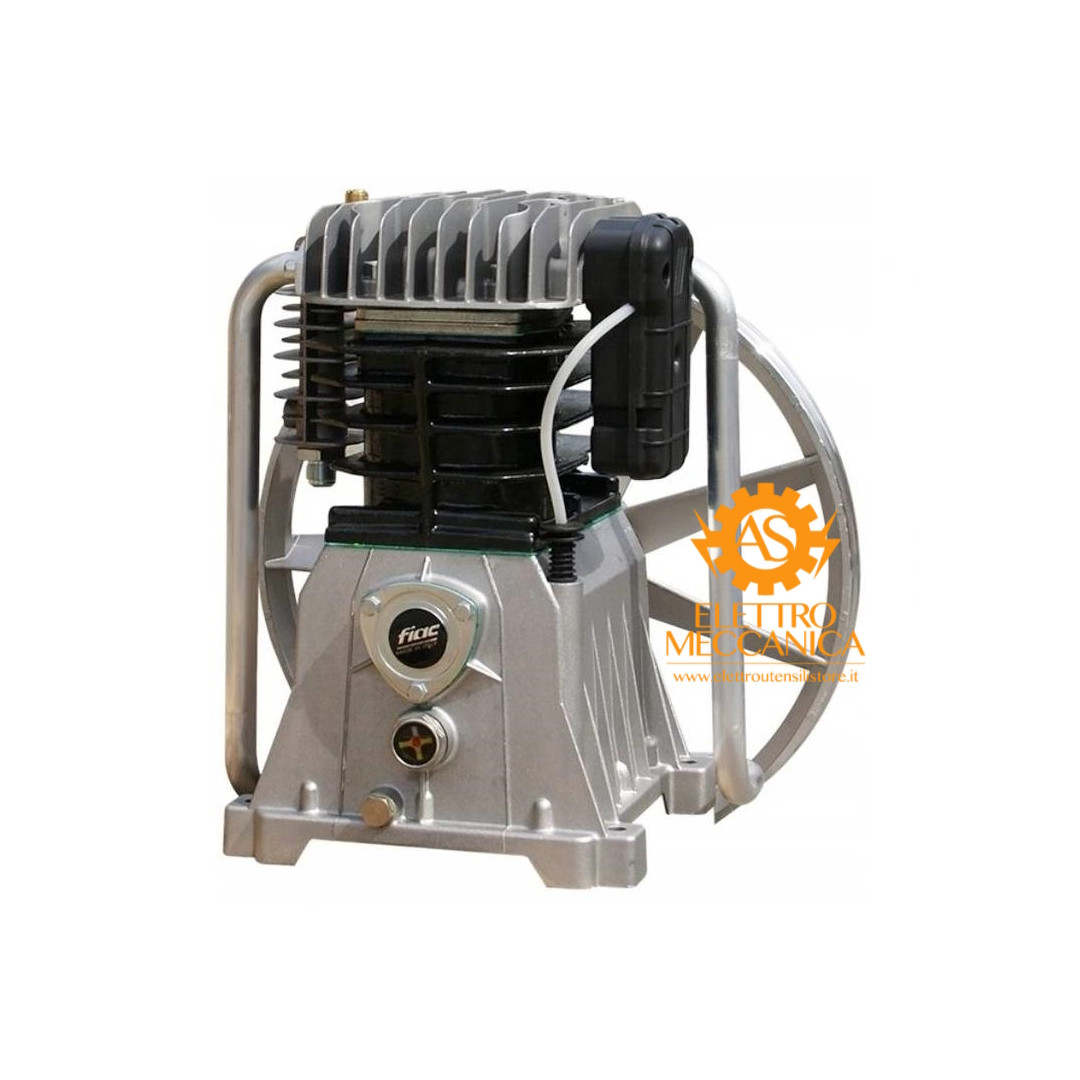

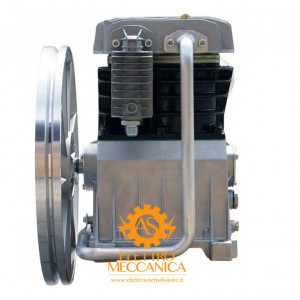

FIAC AB 598 air compressor unit
The AB series distinguishes the oil-lubricated single-stage and two-stage belt-driven two-cylinder compressor units.
The Fiac compressor units have been designed and tested in compliance with the strictest international standards.
Particular research has been dedicated to controlling noise levels and dissipating heat generated during operation.
The compressor unit is supplied by the manufacturer without oil.
| l /min (Suction Air / Air displacement) | 598 |
| CFM (Suction Air / Air displacement) | 21.12 |
| m3/h (Suction Air / Air displacement) | 36 |
| l /min (Delivered Air / F.A.D.) | 450 |
| CFM (Delivered Air / F.A.D.) | 15.9 |
| m3/h (Delivered Air / F.A.D.) | 27 |
| bar | 10 |
| psi | 145 |
| HP | 5.5 |
| kW | 4 |
| Cyl# / St# | 2/2 |
| min-1 | 1270 |
| LxPxH_mm / in | 400x330x440 / 15.8x13x17.3 |
| kg / lb | 17 / 37.5 |
| ø FLYWHEEL ø_mm / in | 400x1SPZ / 15.8x1-3V |
FIAC AB 598 air compressor unit
Valve plate kit for FIAC AB 450 - AB 550 - AB 598 - AB 800
New code 1124230123
previous code 4231230000
Gasket kit for Fiac AB 598 AB 808 Pumping units
New code 1124080228
previous code 4082280000
Vacuum filter kit 080290000 for Fiac AB 598S - AB 598 - AB 808 Pumping units
New code 1124080029
previous code 408029000
Connecting rod for FIAC AB 425 AB 525 AB 598
FIAC AB 598 Pumping unit crank 1125040128
new code 1125040149
High pressure Piston connecting rod kit for FIAC AB 598 Pumping units.
High Pressure Piston diameter 52 mm
Low pressure Piston connecting rod kit for FIAC AB 598 Pumping units.
Low Pressure Piston diameter 100 mm
Upgrade kit FIAC AB598 - AB598S - AB800 pumping units
Code 1124080924
