Reference: 1123020166

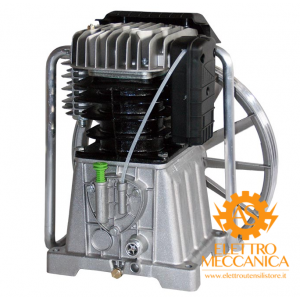

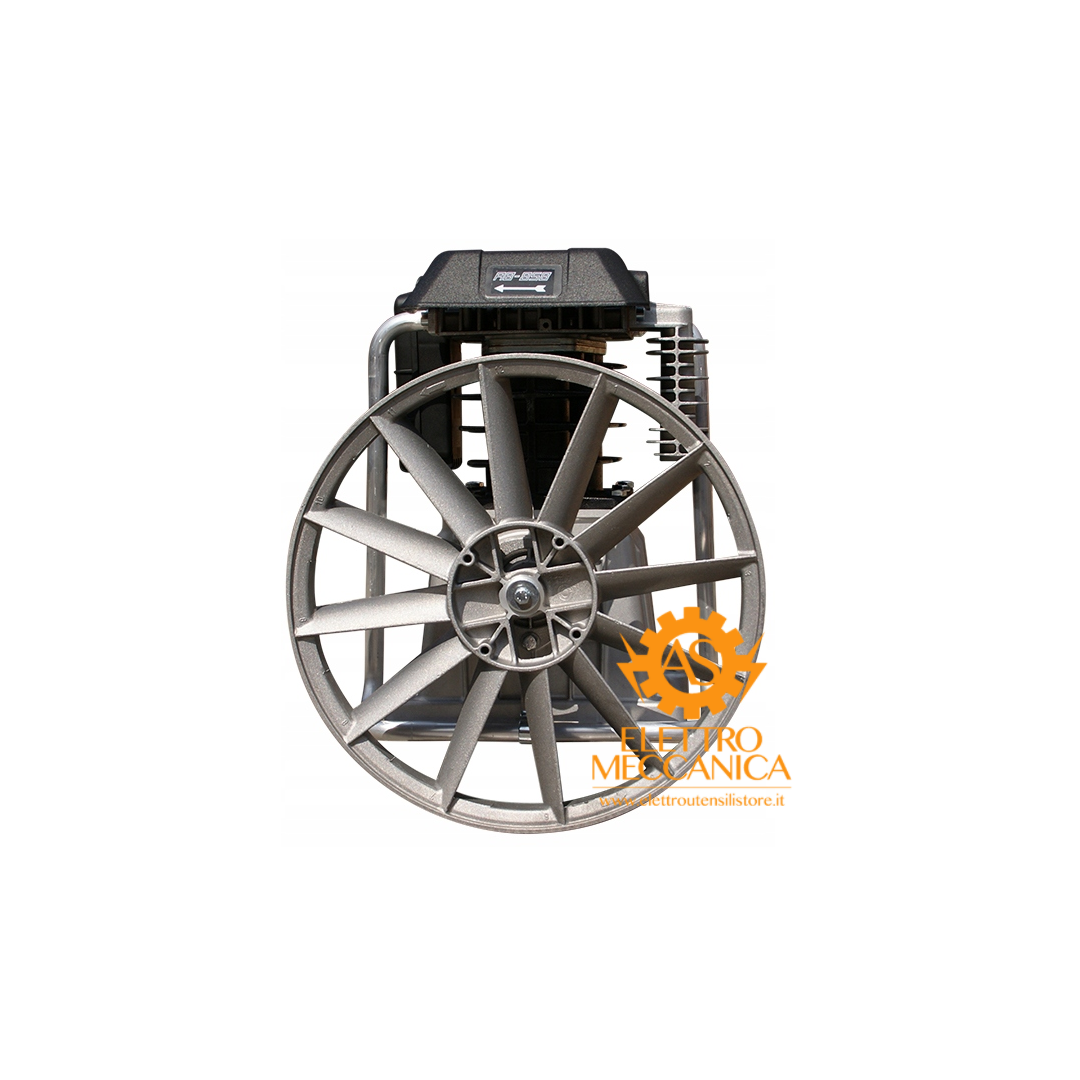

FIAC AB 998 air compressor unit
The AB series distinguishes the oil-lubricated single-stage and two-stage belt-driven two-cylinder compressor units.
The Fiac compressor units have been designed and tested in compliance with the strictest international standards.
Particular research has been dedicated to controlling noise levels and dissipating heat generated during operation.
The compressor unit is supplied by the manufacturer without oil.
| l /min (Aria asp./Air displ.) | 1070 |
| CFM (Aria asp./Air displ.) | 37.7 |
| m3/h (Aria asp./Air displ.) | 64 |
| l /min (Aria resa/F.A.D.) | 831 |
| CFM (Aria resa/F.A.D.) | 29.3 |
| m3/h (Aria resa/F.A.D.) | 49.8 |
| bar | 15 |
| psi | 218 |
| HP | 10 |
| kW | 7,5 |
| Cil# / St# | 2/2 |
| min-1 | 1270 |
| LxPxH_mm / in | 430x380x510 |
| kg / lb | 30/66,14 |
| ø VOLANO_FLYWHEEL ø_mm / in | 430x2SPZ / 15.8x1-3V |
FIAC AB 998 air compressor unit

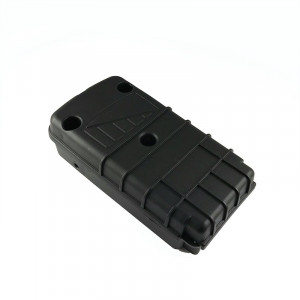

Intake filter kit for Fiac AB 678 - AB 858 - AB 998 Pumping units
New code 1129702979
previous code 9700002979

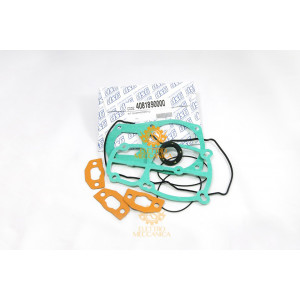

Gasket kit for Fiac AB 998 pumping units
New code 1124080189
previous code 4081890000
Bearing Connecting rod crank for FIAC AB 901 981 991 998 Pumping units

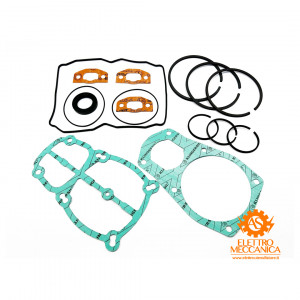

Upgrade kit FIAC AB998 pumping units
Code 1124080931

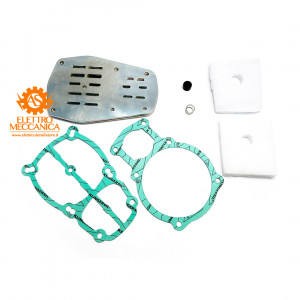

Performance Kit FIAC AB998 - AB998S pumping units
Code 1124080929

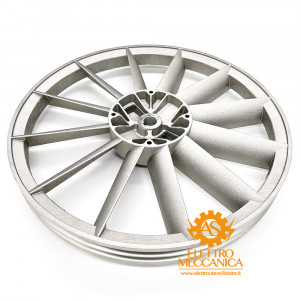

Flywheel for Fiac Pumping Units AB 800 - AB 851 - AB 858 - AB 981 - AB 998
Diameter: 430 mm
Part Number: 1127200125

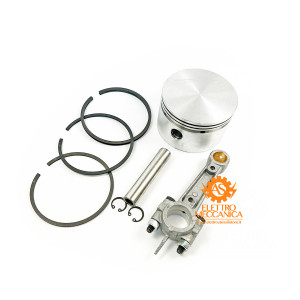

Low pressure Piston connecting rod kit for FIAC AB 958 - AB 998 Pumping units.
Low Pressure Piston diameter 120 mm

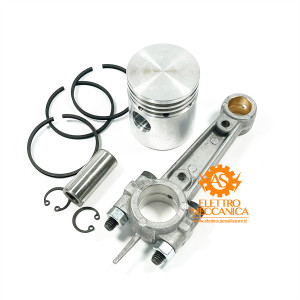

High pressure Piston connecting rod kit for FIAC AB 958 - AB 998 Pumping units.
High Pressure Piston diameter 55 mm

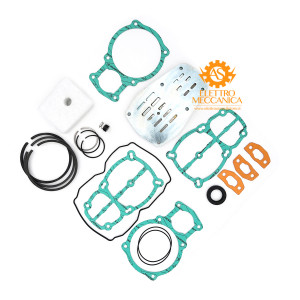

Heavy Duty Kit for Fiac AB 998 Pumping Groups
Code 1124080930
