Reference: 1123020153

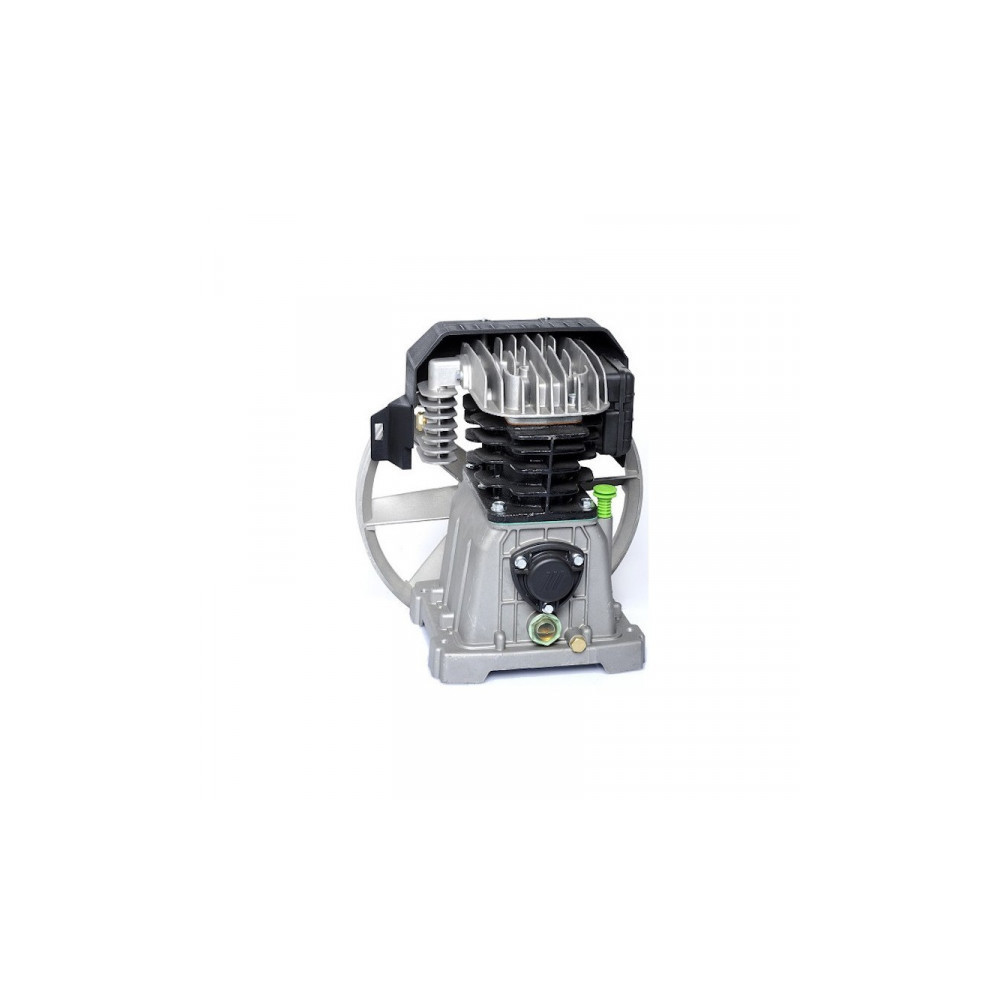

Fiac AB 268 air compressor belt driven pumps
The AB series distinguishes the twin-cylinder compressor groups with single-stage and two-stage oil-lubricated belt transmission.
The Fiac compressor groups have been designed and tested in compliance with the strictest international standards.
Particular attention has been dedicated to reducing noise levels and dissipating the heat generated during operation.
The compressor unit is supplied by the manufacturer without oil.
| l /min (Air displ./Air intake) | 250 |
|---|---|
| CFM (Air displ./Air intake) | 8.8 |
| m3/h (Air displ./Air intake) | 15 |
| l /min (F.A.D./Air output) | 159 |
| CFM (F.A.D./Air output) | 5.6 |
| m3/h (F.A.D./Air output) | 9.5 |
| bar | 10 |
| psi | 145 |
| HP | 2 |
| kW | 1.5 |
| Cyl# / St# | 2/1 |
| min-1 | 1240 |
| LxWxH_mm / in | 300x244x361 11.8x9.6x14.2 |
| kg / lb | 11 24 |
| ø FLYWHEEL ø_mm / in | 300x1A 12.8x1A |
Fiac AB 268 air compressor belt driven pumps
Crank for Fiac AB 248 - AB 338 - AB 258 - AB 268 - AB 360 Pumping units
New code 1129102561
Previous code 9100270140
Gasket kit for Fiac AB 268 Pumping units
Code 1129703271

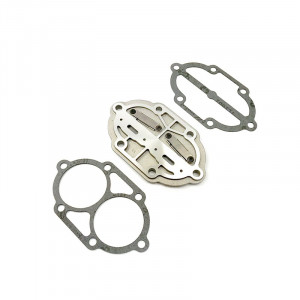

Valve plate kit for FIAC AB 268 - AB 360 pumping units
Code 1129703272
