Valve plate kit for FIAC AB 450 - AB 550 - AB 598 - AB 800
Valve plate kit for FIAC AB 450 - AB 550 - AB 598 - AB 800
New code 1124230123
previous code 4231230000
Reference: 1123020163

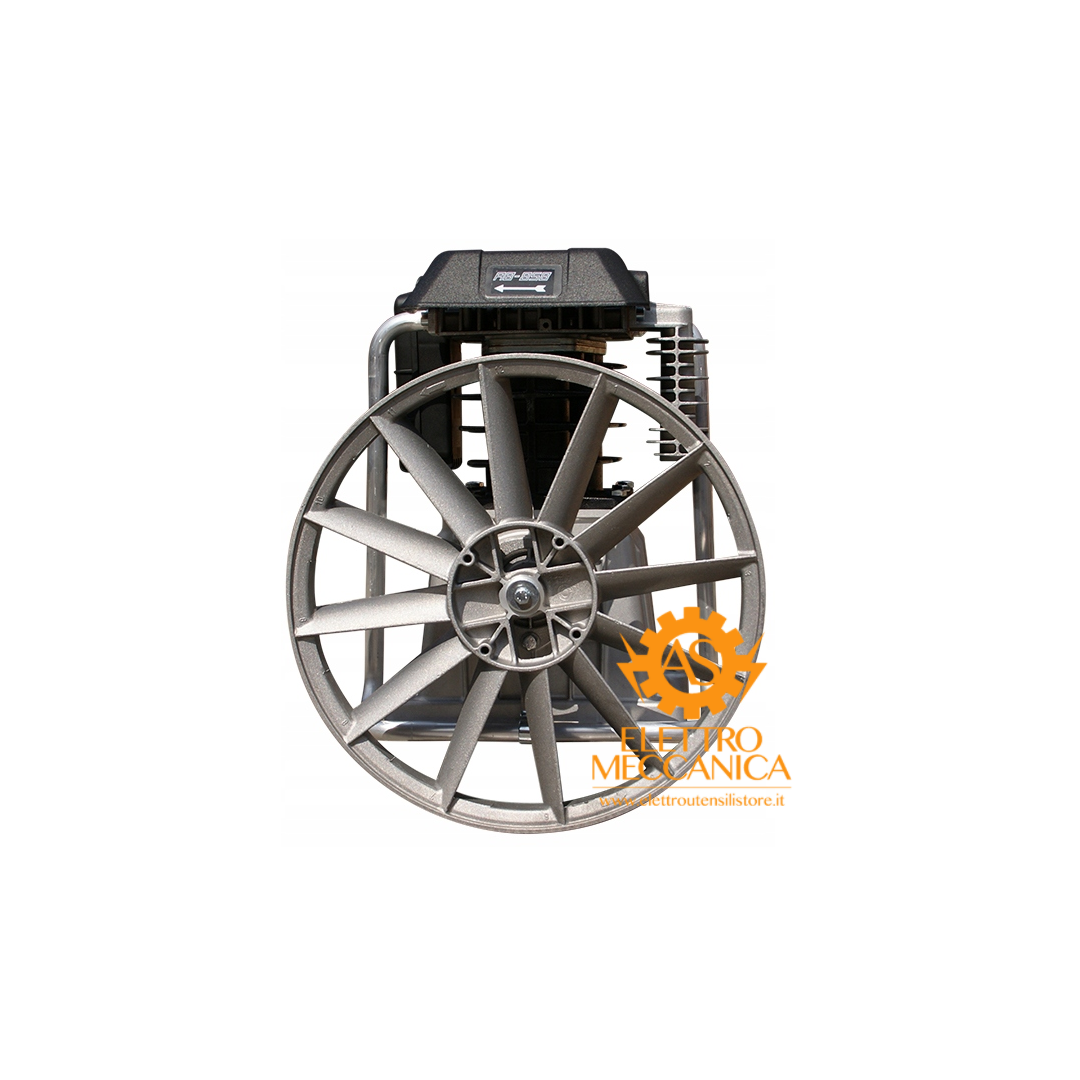

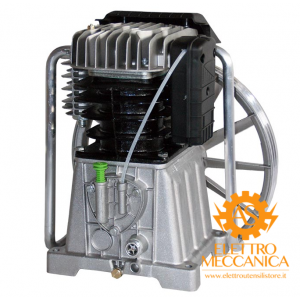

FIAC AB 858 air compressor unit
The AB series distinguishes the oil-lubricated single-stage and two-stage belt-driven two-cylinder compressor units.
The Fiac compressor units have been designed and tested in compliance with the strictest international standards.
Particular research has been dedicated to controlling noise levels and dissipating heat generated during operation.
The compressor unit is supplied by the manufacturer without oil.
l /min (Aria asp./Air displ.) | 830 |
CFM (Aria asp./Air displ.) | 29.3 |
m3/h (Aria asp./Air displ.) | 49.8 |
l /min (Aria resa/F.A.D.) | 620 |
CFM (Aria resa/F.A.D.) | 22 |
m3/h (Aria resa/F.A.D.) | 35 |
bar | 10 |
psi | 145 |
HP | 7.5 |
kW | 5,5 |
Cil# / St# | 2/2 |
min-1 | 1270 |
LxPxH_mm / in | 430x380x510 |
kg / lb | 30/66,14 |
ø VOLANO_FLYWHEEL ø_mm / in | 430x2SPZ / 15.8x1-3V |
