Reference: 4116090646

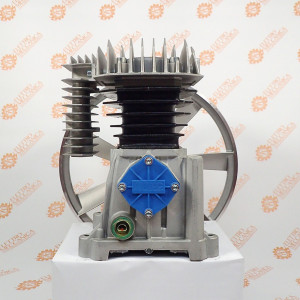

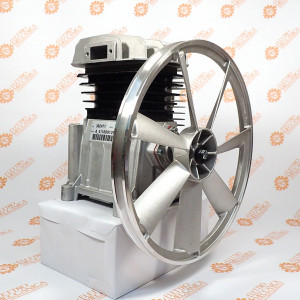

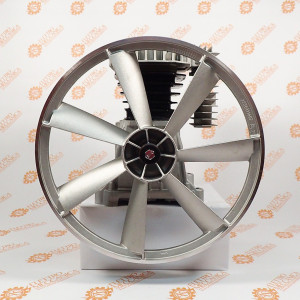

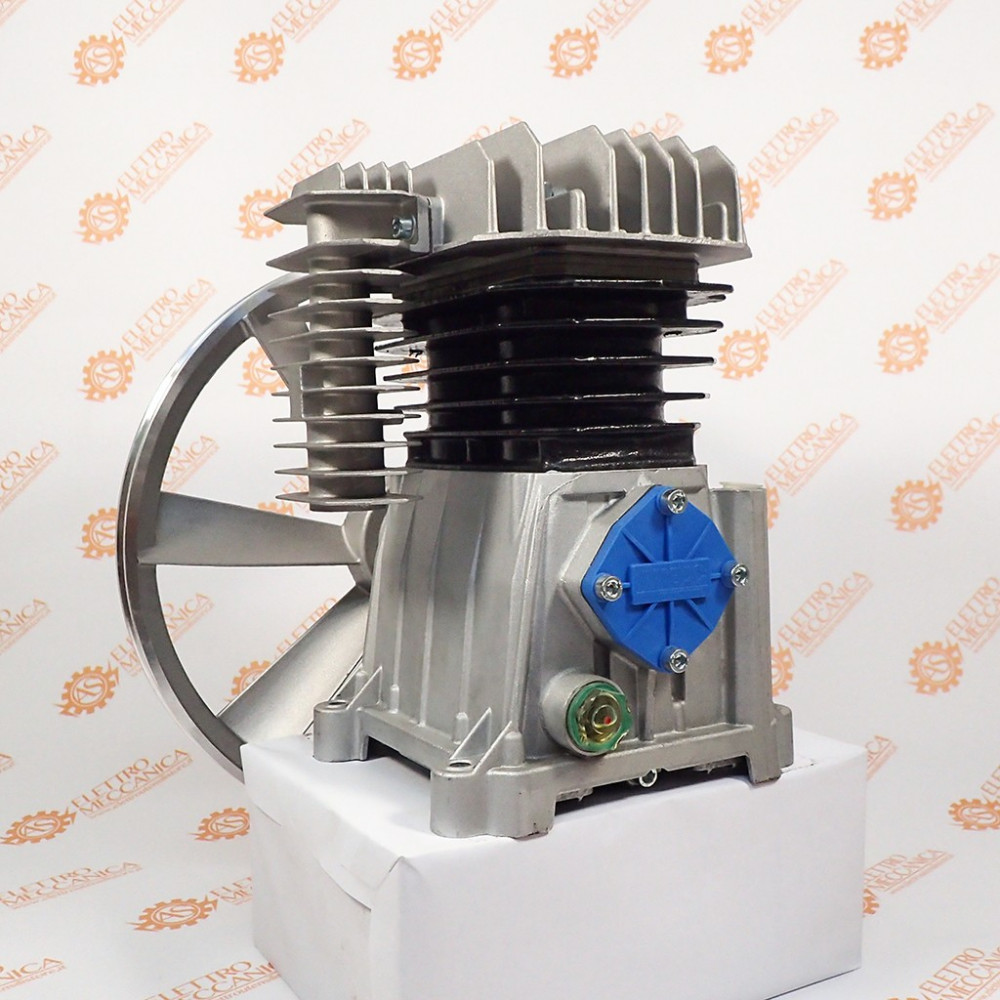

Abac PAT24 A29B NS12 new Pumping Unit. A Compressor filter and flywheel are included in the price
Belt-Driven Single-Stage Compressor Unit
- Air filter and flywheel included in the price
- Die-cast aluminum heads with large fins for better cooling
- Oversized oil sump for improved lubrication
- Special valve plates with high wear resistance
The compressor unit is supplied by the manufacturer without oil.
Technical Specifications:
Maximum Pressure [bar] 11
Intake Air [l/min] 255 at [rpm] 1075
Intake Air [l/min] 320 at [rpm] 1300
Designed to work with a 2 HP / 1.5 kW - 3 HP / 2.2 kW engine
Number of Pistons 2
Number of Compression Stages 1
Rotation Speed [rpm] 1075 - [rpm] 1300
