Reference: 1123020156
Pumping Unit FIAC AB 415 - AB 515 with Belt Drive
Lubricated pump group FIAC AB 415 - AB 515 with belt drive. The AB series distinguishes the oil-lubricated single-stage and two-stage twin-cylinder compressor groups.
The Fiac compressor groups have been designed and tested in accordance with the strictest international standards.
A special effort has been dedicated to reducing noise levels and dissipating heat generated during operation.
The compressor group is supplied by the manufacturer without oil.
| l /min (Intake Air / Air displacement) | 335 |
|---|---|
| CFM (Intake Air / Air displacement) | 12.4 |
| m3/h (Intake Air / Air displacement) | 21 |
| l /min (Delivered Air / F.A.D.) | 225 |
| CFM (Delivered Air / F.A.D.) | 7.9 |
| m3/h (Delivered Air / F.A.D.) | 30.6 |
| bar | 10 |
| psi | 145 |
| HP | 4 |
| kW | 3 |
| Cyl# / St# | 2/1 |
| min-1 | 1280 |
| LxPxH_mm / in | 350x300x400 / 13.8x11.8x15.8 |
| kg / lb | 12 / 26 |
| ø FLYWHEEL ø_mm / in | 345x3V / 13.58x3V |
Pumping Unit FIAC AB 415 - AB 515 with Belt Drive

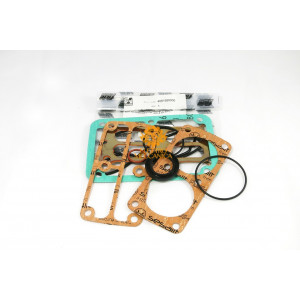

Gasket kit for Fiac AB 415 AB 515 Pumping units
New code 1124080199
previous code 4081990000
Upgrade kit FIAC AB415 - AB515 pumping units
Code 1124080919

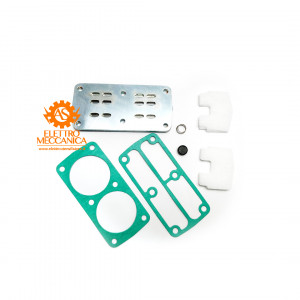

Performance Kit FIAC AB 415 - AB 515 pumping units
Code 112080918

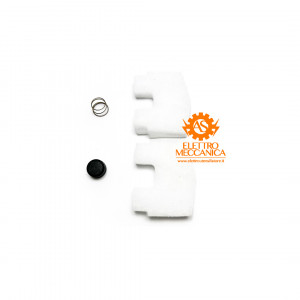

Easy Kit FIAC AB 415 - AB 515 pumping units
Code 1124080917
