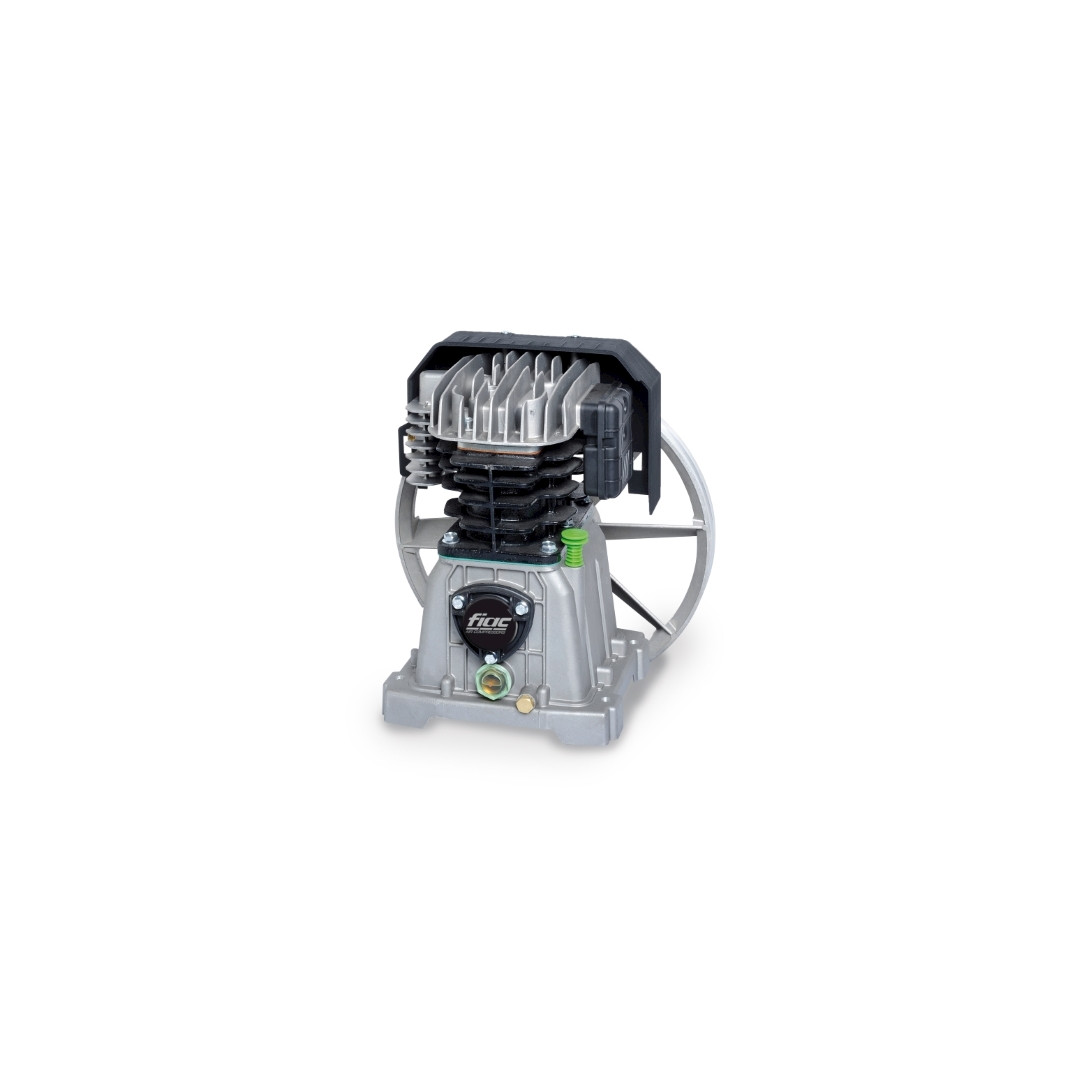

Belt-Driven Pumping Unit Fiac AB 415 - AB 515
  • Belt-Driven Pumping Unit Fiac AB 415 - AB 515

Fiac AB 415 AB 515 Lubricated air compressor belt driven pumps

Reference: 1123020156

€286.89
Tax excluded Shipping excluded *

Lubricated Pumping Unit FIAC AB 415 - AB 515 with Belt Drive

Quantity
Unavailable

Lubricated Pumping Unit FIAC AB 415 - AB 515 with Belt Drive

The AB series features oil-lubricated, single-stage, and two-stage belt-driven, two-cylinder compressor units.

Fiac compressor units are designed and tested in compliance with the strictest international standards.

Special attention has been given to reducing noise levels and dissipating the heat generated during operation.

l /min (Aria asp./Air displ.)
335
CFM (Aria asp./Air displ.)
12.4
m3/h (Aria asp./Air displ.)
21
l /min (Aria resa/F.A.D.)
225
CFM (Aria resa/F.A.D.)
7.9
m3/h (Aria resa/F.A.D.)
30,6
bar
10
psi
145
HP
4
kW
3
Cil# / St#
2/1
min-1
1280
LxPxH_mm / in
350x300x400 13.8x11.8x15.8
kg / lb
12 / 26
ø VOLANO_FLYWHEEL ø_mm / in
345x3V 13.58x3V

1123020156
